MGB-L0-APA-AA6A1-S3-R-110546 (ORDER NO. 110546)

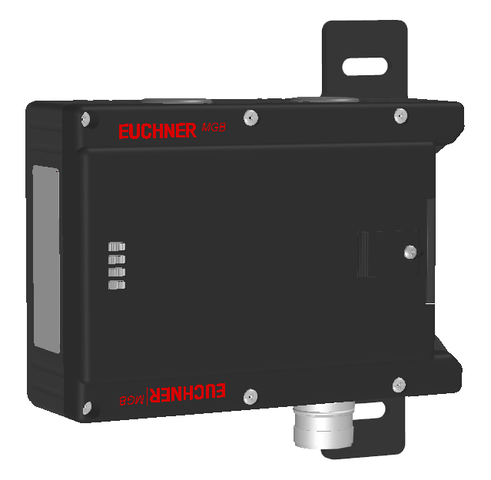

Interlocking module MGB-L0-APA.., with 3 pushbuttons, incl. label carrier, M12 for enabling switch
- Interlocking (without guard locking)
- 3 pushbuttons (illuminated, wh, ye, bu)
- incl. adhesive labels
- With cable entry
- With plug connector M12 for enabling switch
- Unicode
Controls and indicators
| Assignment diagram | L1 |
| Item | Extras | Color | Designation1 | Number | LED | Version | Slide-in label | Switching element | Einlegeschild Anmerkung |
|---|---|---|---|---|---|---|---|---|---|
| 2 | white | Illuminated pushbutton | 1NO | ||||||
| 3 | yellow | Illuminated pushbutton | 1NO | ||||||
| 4 | blue | Illuminated pushbutton | 1NO |
Electrical connection ratings
| Connection cross-section | |
| (rigid/flexible) with cable end sleeve according to DIN 46 228/1 | 0.25 ... 1.5 mm² |
| (rigid/flexible) | 0.13 ... 1.5 mm² |
| (rigid/flexible) with cable end sleeve with collar according to DIN 46 228/1 | 0.25 ... 0.75 mm² |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Discrepancy time | |
| between FO1A and FO1B | max. 10 ms |
| Rated impulse withstand voltage Uimp | 1.5 kV |
| Rated insulation voltage Ui | 30 V |
| Risk time according to EN 60947-5-3 | max. 350 ms |
| Safety class | III |
| Transponder coding | Unicode |
| Utilization category | |
| DC-13 | 24V 200mA |
| Controls and indicators | |
| Breaking capacity | max. 0.25 W |
| LED power supply | 24 V DC |
| Switching current | 1 ... 10 mA |
| Switching voltage | UA V |
| Monitoring outputs OD, OT, OL, OI | |
| Output current | max. 50 mA |
| Output type | Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage | UA-2V ... UA V DC |
| Safety outputs FO1A, FO1B | |
| Output current | |
| per safety output FO1A / FO1B | 1 ... 200 mA |
| Output type | Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage | |
| UFO1A /UFO1B HIGH | UB-2V ... UB V DC |
| UFO1A /UFO1B LOW | 0 ... 1 V DC |
| Test pulse interval | min. 100 ms |
| Test pulses | max. 0.3 ms |
| Power supply UA | |
| Current consumption | |
| IUA | max. 10 mA |
| Operating voltage DC | |
| UA | 24 V DC -15% ... +10% |
| Power supply UB | |
| Current consumption | |
| IUB | max. 80 mA |
| Operating voltage DC | |
| UB | 24 V DC -15% ... +10% |
Mechanical values and environment
| Ambient temperature | |
| at UB = 24V DC | -20 ... +55 °C |
| Connection | |
| Cable entries M20x1.5 | |
| Plug connector SFF5 | |
| Degree of protection | IP65 |
| Installation orientation | Door hinge DIN right |
| Material | |
| Housing | Fiber glass reinforced plastic; nickel-plated die-cast zinc; stainless steel |
| Mechanical life | |
| 1 x 10⁶ | |
| in case of use as door stop, and 1 Joule impact energy | 0.1 x 10⁶ |
| Switching frequency | 0.25 Hz |
Reliability values according to EN ISO 13849-1
| Mission time | 20 y |
| Monitoring of the guard position | |
| Category | 4 |
| Performance Level | PL e |
| PFHd | 3.7 x 10-9 |
Miscellaneous
| Product version number | V3.0.0 | |||||||||||||||||||||||
| Slide-in label | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
